Product Description

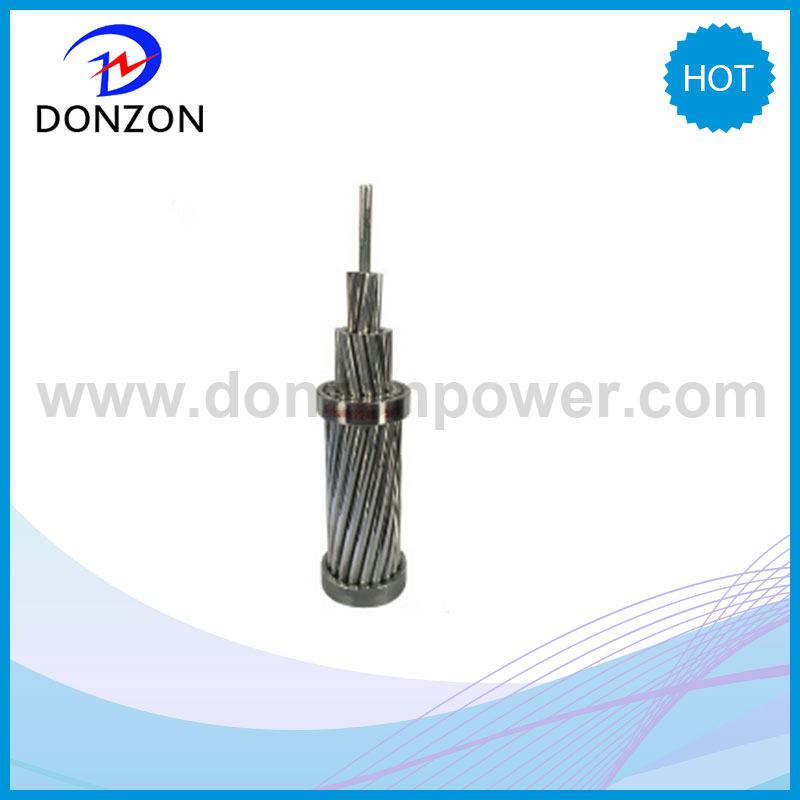

The core of aluminium clad PBT tube OPGW cable adopt the structure of stranding pattern, then the multiple optical fiber PBT tubes are into cable, a layer of seamless aluminum tube will be clad on it which is as the protection tube of optical fiber metal, then stranding one or more aluminum clad steel wires or aluminum alloy wires outside the protection tube. It eliminates the worries about the electrochemical corrosion among different metals and has very high application value. The characteristics are as follows:
Structure characteristics and application:

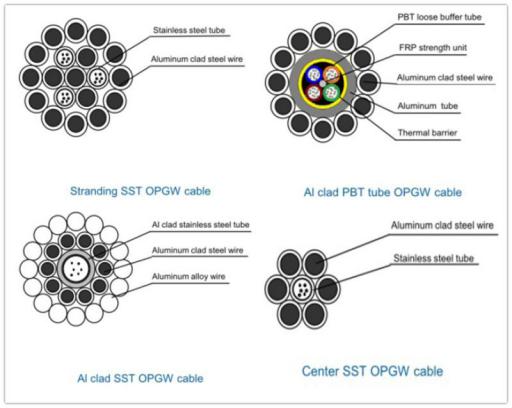

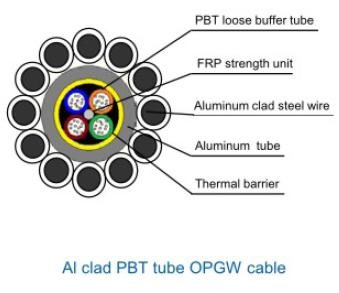

·Seamless aluminum tube has uniform texture, consistent with the texture of the whole ground wire aluminum clad steel wire, no worries about the electrochemical corrosion among different metals.
·Since the texture and structure of the whole ground wire are uniform, it has good fatigue resistance.
·Optical fiber of aluminum tube OPGW are exist in PBT tube, the cable core which is clad with a layer of thermal insulation material, with good thermal insulation effect and good protection effect of fiber optics, and short-circuit current has little influence to transmitting performance of fiber optics.
Standard:
ASTM B416-98, AS1222, IEC61089
Why to choose DONZON POWER:
1.Competitive price & On time delivery & Short lead time
2.Strict quality control
3. Thorough after-sales service
4.We are the leading manufacturer for ADSS & OPGW in China
5.Full range of testing equipments to ensure products' performance
| Cable model | OPGW-60 | OPGW-70 | OPGW-90 | OPGW-110 | OPGW-130 |
| Number /diameter(mm) of stainless steel tube | 1/3.5 | 2/2.4 | 2/2.6 | 2/2.8 | 1/3.0 |
| Number /diameter of AL wire(mm) | 0/3.5 | 12/2.4 | 12/2.6 | 12/2.8 | 12/3.0 |
| Number /diameter of ACS wire(mm) | 6/3.5 | 5/2.4 | 5/2.6 | 5/2.8 | 6/3.0 |
| Diameter of Cable (mm) | 10.5 | 12.0 | 13.0 | 14.0 | 15.0 |
| RTS(KN) | 75 | 45 | 53 | 64 | 80 |
| Cable weight (kg/km) | 415 | 320 | 374 | 432 | 527 |
| DC resistance(200C W/km) | 1.36 | 0.524 | 0.448 | 0.386 | 0.327 |
| Modulus of elasticity(Gpa) | 162.0 | 96.1 | 95.9 | 95.6 | 97.8 |
| coefficient of Linear thermal expansion(1/℃×10-6) | 12.6 | 17.8 | 17.8 | 17.8 | 17.2 |
| Short circuit capacity (kA²s) | 24.0 | 57.3 | 78.9 | 105.8 | 150.4 |
| Max. operation temperature (℃) | 200 | 200 | 200 | 200 | 200 |
| Max. fiber count | 48 | 32 | 48 | 52 | 30 |
Packaging details:
Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battens;or any other package u see from the market we can make for u as well,any OEM order is welcome,or according to the quantity.
