24 cores- Stranded Stainless Steel Tube Opgw Optical Cable-OPGW
Application:
It is widely used in aerial electricity transmission,overhead ground conductor, extra high voltage overhead conductor, optical fiber composite overhead ground line and self-danping conductor line,etc
Standard:
ASTM B416-98, AS1222, IEC61089
Structure:
Aluminium clad stainless steel tube OPGW is a kind of new optical cable which inherits all the advantages of stainless steel tube OPGW, it can greatly reduces the electrochemical corrosion among different metals and has good application prospects. The characteristics are as follows:
Product Specifications:
| Cable model | OPGW-60 | OPGW-70 | OPGW-90 | OPGW-110 | OPGW-130 |
| Number /diameter(mm) of stainless steel tube | 1/3.5 | 2/2.4 | 2/2.6 | 2/2.8 | 1/3.0 |
| Number /diameter of AL wire(mm) | 0/3.5 | 12/2.4 | 12/2.6 | 12/2.8 | 12/3.0 |
| Number /diameter of ACS wire(mm) | 6/3.5 | 5/2.4 | 5/2.6 | 5/2.8 | 6/3.0 |
| Diameter of Cable (mm) | 10.5 | 12.0 | 13.0 | 14.0 | 15.0 |
| RTS(KN) | 75 | 45 | 53 | 64 | 80 |
| Cable weight (kg/km) | 415 | 320 | 374 | 432 | 527 |
| DC resistance(200C W/km) | 1.36 | 0.524 | 0.448 | 0.386 | 0.327 |
| Modulus of elasticity(Gpa) | 162.0 | 96.1 | 95.9 | 95.6 | 97.8 |
| coefficient of Linear thermal expansion(1/℃×10-6) | 12.6 | 17.8 | 17.8 | 17.8 | 17.2 |
| Short circuit capacity (kA²s) | 24.0 | 57.3 | 78.9 | 105.8 | 150.4 |
| Max. operation temperature (℃) | 200 | 200 | 200 | 200 | 200 |
| Max. fiber count | 48 | 32 | 48 | 52 | 30 |
3.Packaging Details:

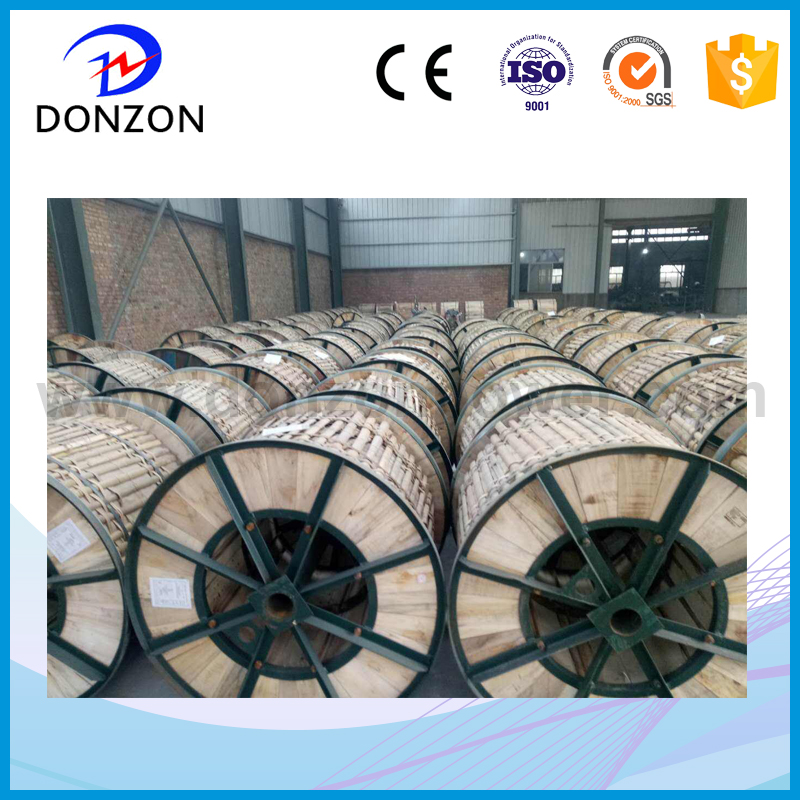

Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battens;or any other package u see from the market we can make for u as well,any OEM order is welcome,or according to the quantity.
Why Choose DONZON POWER:
1.Competitive price & On time delivery & Short lead time
2.Strict quality control
3. Thorough after-sales service
4.We are the leading manufacturer for ADSS & OPGW in China
5.Full range of testing equipments to ensure products' performance
