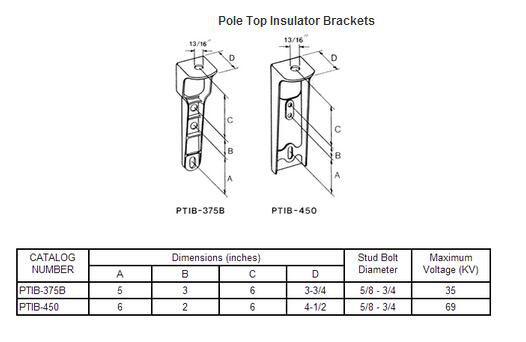

The specification of the post insulator bracket
| Product Group | post insulator bracket |
| Product Type | galvanized steel post insulator bracket |
| Material | Carbon steel |
| Voltage | high voltage, medium voltage |
| Product Finish | hot-dip galvanized |
| Zinc thickness | more than 86 micron |
| Feature | easy insultation with high quality |
| weight | 2.5kg |
| Packing | wooden box |
| Pallet Quantity | 50pcs |
| Port | Xingang Port |
| MOQ | 500PCS |
The post insulator bracket Detail:
Features:
● Straight thimble eyelets are made for installation in holes augered by power drillers.
● A retainer on the bottom holds the nut from the forged eye rod (sold separately).
Application:
● A hole to the size listed on the table for the anchors is augered to a depth based on the rod length.
● The hole is undercut so the anchor is at a right angle to the guy. A rod trench is cut with a trenching
● Tool or drilled with a small power auger to the guy angle. The width of the trench should be just.
Sufficient
● To accommodate the rod. The rod is secured to the cross plate anchor and placed in the excavated hole and trench.
● The hole is then refilled and tamped.
● See overhead line fitting Application Data to select the appropriate anchor.
● See overhead line fitting to select appropriate rod.
