POLE TOP BRACKET
1.Product Description

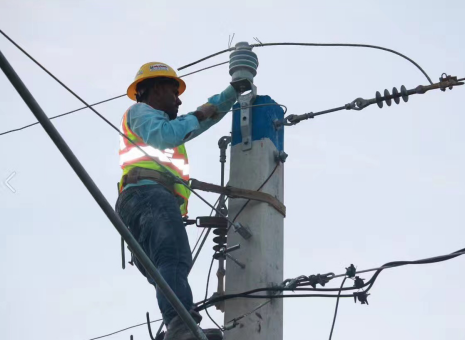

Pole top brackets used for mounting post type Insulators on the top of utility poles. Bracket made from ductile iron steel. Hot Dip Galvanized to meet ASTM Specification A153.
The material is carbon steel .
The finish is Hot dipped galvanized & Zinc & Plain Oiled & other special finishes as order

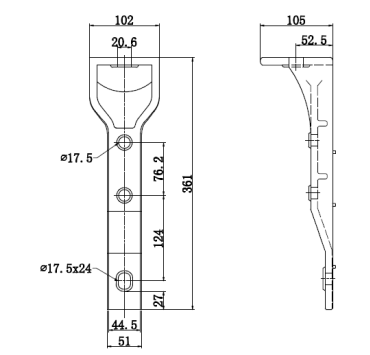

2.Drawing
3.Product Specification
Specifications of the offered materials
1.Tensile Strength (N / square mm):375 N /mm2 up to 510 N/mm2
2.Yield Point (N / square mm):235 N/mm2
3.Zinc Coating Wt (gram / square meter):505
4.Zinc Coating Thickness ( microns ):85 or 100
5. Zinc Coating standard :ASTM 152 /123, BS 729
Model NO. | Stud bolt | Mounting bolt | Weight |
inch | inch | Kg/Pcs | |
B1110 | 5/8-3/4 | 5/8 | 2.44 |
B1120 | 5/8-3/4 | 5/8 | 2.85 |

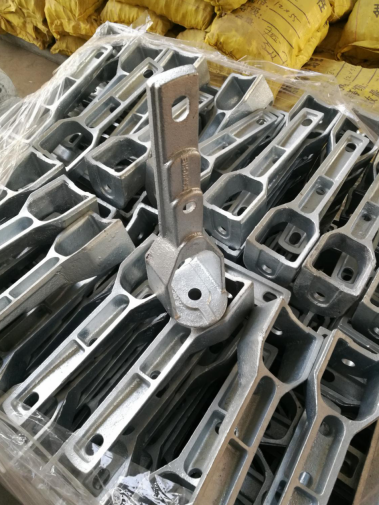

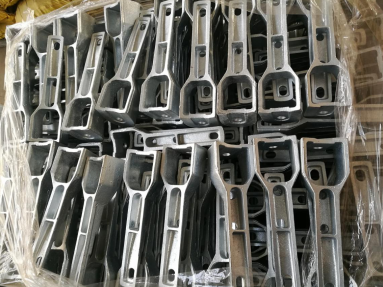

4.Packaging Details
Standard export packing or as your requirement
Delivery Time:within 7-15 days after confirm the order
Port: tianjin port
Lead Time :within 7-15 days after confirm the order
