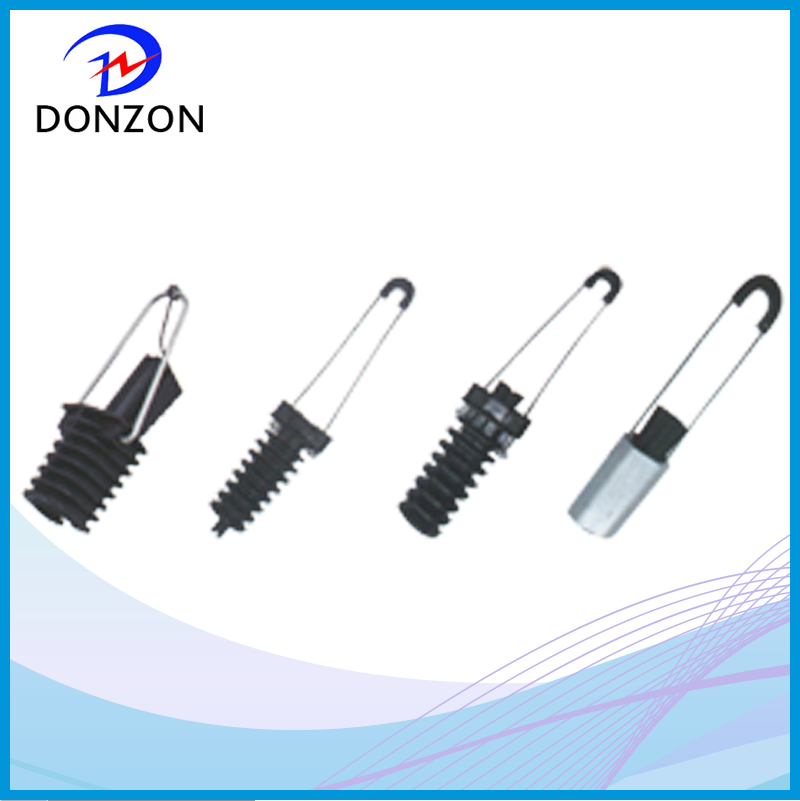

Dead end Clamp for ABC cable

Dead end Clamp for ABC cable

1.Dead end  Clamp For  ABC cable

Type No.:NXJ-Aluminum Anchoring Clamps For L.V. Overhead Networks

Product description

The clamps are designed for different messenger cross sections suitable for
various climatic conditions. The clamps are easy to install without tools and available
for both bracket and hook installation to wooden, concrete or steel poles. Clamps
are supplied with or without the bracket. Universal fixing of bracket by 2 bolts M14
or stainless steel straps of 20x0.7 mm.

 2.Dead end Clamps For LV-ABC Lines With Insulated

Type No.:JBG-Aluminum Anchoring Clamps For LV-ABC Lines With Insul

Product description

The clamps are designed to anchor LV-ABC lines with insulated neutral messenger. The clamp consists of an aluminum alloy open body with two self-adjusting insulating plastic wedges ensuring the clamping of the neutral messenger without damaging cable insulation.The unloosable stainless steel flexible bail equipped with an movable insulating wear-resistant saddle and two sleeves compressed on the ends to be locked on the clamp body. The saddle can allows installations of up to 3 clamps on a bracket.
The clamp and the bracket are available separately and together as assembly. Maximum line deviation angles of 50°for single and 100°for double anchoring, And it's tool free installation and no losable parts. The universal fixing of bracket by 2 bolts or stainless steel straps of 20X0.7mm

3.Packaging details

We will be responsible for packing the stores suitable for transit by sea/rail/road so as to ensure their

being free from loss or damage on arrival at destination.
