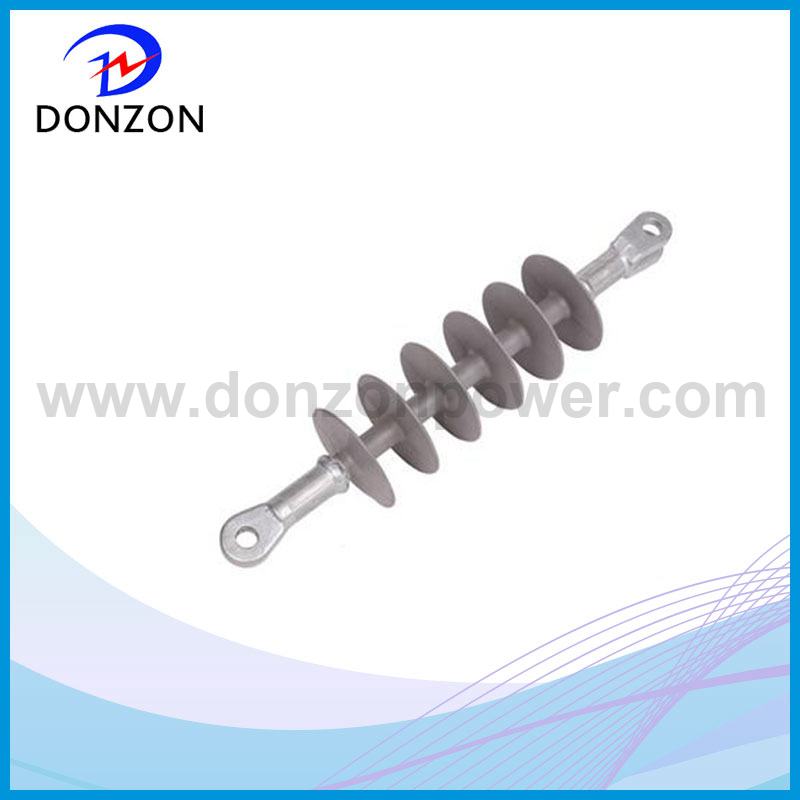

Product Description
| Type | No. Of Sheds | “X” Length ;inches (mm) | Diameter Inches (mm) | Leakage Distance Inches (mm) | Dry Arc Distance inches (mm) | Lighting withstand voltage | Wet power frequency voltage | Coupling size | SML Pounds (kN) | |
| D | d | |||||||||
| FXBW-10/70 | 4 | 310 | 105 | 75 | 350 | 152 | 90 | 40 | 16 | 70 |
| FXBW-36/40 | 9 | 440 | 130 | 90 | 950 | 320 | 230 | 150 | 16 | 40 |
| FXBW-36/100 | 9 | 483 | 130 | 90 | 950 | 320 | 230 | 150 | 16 | 100 |
| FXBW-35/70 | 12 | 660 | 135 | 110 | 1600 | 526 | 230 | 150 | 16 | 70 |
| FXBW-35/100 | 12 | 680 | 135 | 110 | 1600 | 526 | 230 | 150 | 16 | 100 |
| FXBW-66/70 | 20 | 980 | 135 | 110 | 2500 | 826 | 410 | 185 | 16 | 70 |
| FXBW-66/100 | 20 | 1000 | 135 | 110 | 2500 | 826 | 410 | 185 | 16 | 100 |
| FXBW-66/120 | 20 | 1040 | 135 | 110 | 2500 | 826 | 410 | 185 | 16 | 120 |
| FXBW-110/70 | 26 | 1190 | 135 | 110 | 3500 | 1050 | 550 | 250 | 16 | 70 |
| FXBW-110/100 | 26 | 1210 | 135 | 110 | 3500 | 1050 | 550 | 250 | 16 | 100 |
| FXBW-110/120 | 26 | 1250 | 135 | 110 | 3500 | 1050 | 550 | 250 | 16 | 120 |
| FXBW-220/120 | 54 | 2470 | 150 | 120 | 6300 | 2130 | 1000 | 395 | 16 | 120 |
| FXBW-220/210 | 56 | 2470 | 170 | 120 | 6300 | 2155 | 1000 | 395 | 20 | 210 |
1. Shed connected with core by integral foring
2. The thinkness of housing > 3mm,unifirm to IEC Standard
3. Acid resistant,hight temperature resistant of epoxy fiberglass core
4. Metal end fittings,core and sheds connected by new crimping process
5. Hot galvanization and technology of rareearth aluminum coating to avoid coating shedding prolonging the service life
Product characteristics
1.No flaw,crack in the surface and interior ,each bar color uniform(green or light yellow).
2.Can withstand the sawing,milling,planning,drilling,lathe and other mechanical processing.
3.Internal thread can be tapping with screw tap,external thread can be polished,but not allowed to bear overload.
4.It has good damping,creep resistance,fatigue resistance,fracture resistance ,high temperature resistance,stress corrosion resistance etc.

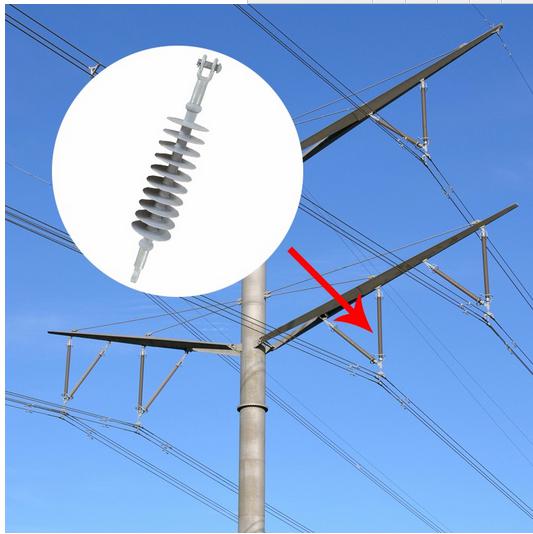

Application
