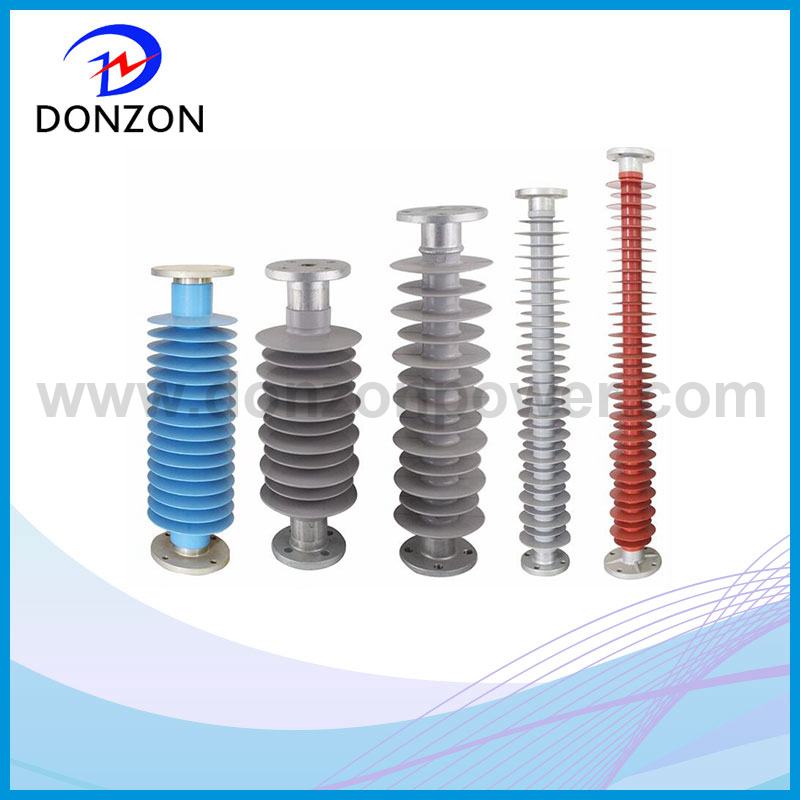

132KV Polymer Line Post Composite insulator manufacturer
This kind of product is applied to power station facilities, and has features of good water repellence, anti-ageing, resistance to tracking and erosion has high tensile strength and bending strength, high shock resistance, good shock and brittle fracture prevention, light weight, easy to install, and the installation dimensions of top and base are the same with those of porcelain post type, they can be exchanged to use each other.
Our main products are as follows:
1.10kv -750kv silicone rubber insulator
2.Diam.5-180mm Insulator core rod(epoxy resin rod)
3.Many kinds of insulator fittings such as ball,socket,Tongue,Clevis,Flange and so on.
4.Silicone rubber
Product Description
Main technical parameters
| Type | No. Of Sheds | “X” Length inches (mm) | Diameter Inches (mm) | Leakage Distance Inches (mm) | Dry Arc Distance inches (mm) | Lighting withstan voltage | Wet power frequency voltage | SML Specified Mechanical Load(kN) | Top end fitting dianeter | Bottom end fitting dianeter | |
| FZSW-10/4.0 | 5 | 250 | 110 | 85 | 400 | 160 | 95 | 40 | 4.0 | 76 | 76 |
| FZSW-12/4.0 | 4 | 254 | 120 | 90 | 400 | 145 | 95 | 40 | 4.0 | 76 | 76 |
| FZSW-20/4.0 | 6 | 315 | 137 | 110 | 580 | 215 | 145 | 50 | 4.0 | 76 | 76 |
| FZSW-24/4.0 | 7 | 370 | 120 | 90 | 580 | 260 | 145 | 50 | 4.0 | 76 | 76 |
| FZSW-36/12.0 | 19 | 550 | 140 | 110 | 1260 | 404 | 230 | 95 | 12.0 | 140 | 140 |
| FZSW-40.5/4.0 | 15 | 560 | 123 | 80 | 1050 | 450 | 230 | 95 | 4.0 | 76 | 76 |
| FZSW-66/10.0 | 21 | 905 | 166 | 136 | 1900 | 766 | 410 | 185 | 10.0 | 127 | 127 |
| FZSW-72.5/6.0 | 15 | 890 | 170 | 140 | 1900 | 742 | 410 | 185 | 6.0 | 127 | 127 |
| FZSW-110/5.0 | 30 | 1220 | 166 | 136 | 3150 | 1081 | 550 | 230 | 5.0 | 127 | 178 |
| FZSW-220/2.5 | 57 | 2310 | 187 | 157 | 6300 | 2100 | 950 | 395 | 2.5 | 150 | 150 |
| FZSW-252/4.0 | 55 | 2300 | 196 | 166 | 6300 | 2100 | 950 | 395 | 4.0 | 127 | 200 |
