1.Description
Optical fiber cable fitting is a kind of line products used for installing support and protection of OPGW & ADSS cable.

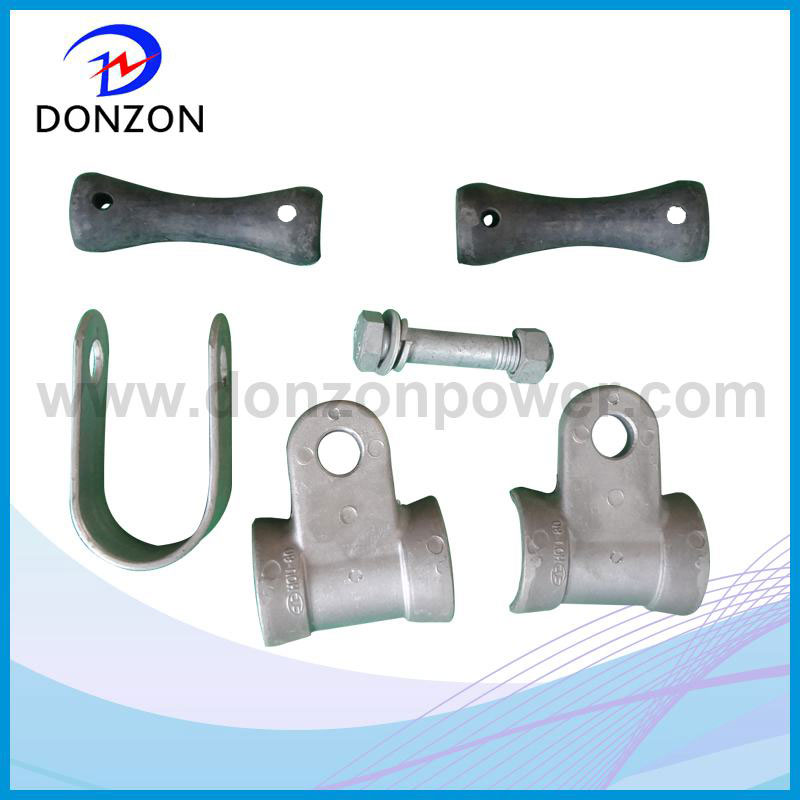

Optical fiber cable fitting is a kind of line products used for installing support and protection of OPGW & ADSS cable. The line products include tension fittings, Suspension fittings, down lead fittings, spiral vibration damper, connection fittings, joint box, cable storage assembly, etc, tension fittings and suspension fittings are made up structural reinforcing rods. This kind of fittings bears the excellence of simple structure, easy to installation and also enables to stress equalizing and scattering, thus realize to grip and protect optical fiber cable.
2.Specification
| Type | Drawing NO. | Main Dimensions(mm) | Weight (KG) | Vertical Devastating Load (KN) | |||
| d | l | h | c | ||||
| XGT-40 | 1 | M16 | 150 | 62 | 20 | 1.17 | 40 |
| XGT-95 | 2 | M16 | 95 | 55 | 19 | 1.28 | 70 |
| XGT-114 | 2 | M16 | 114 | 60 | 22 | 1.70 | 100 |
| XGT-125 | 2 | M16 | 125 | 64 | 22 | 1.97 | 120 |
| XGT-135 | 2 | M16 | 135 | 68 | 30 | 2.60 | 130 |
3.Packaging and Shipping
Packaging: according to the concrete product cartons,wooden cases (as customer's requirements)
Delivery:usually,it will take about two weeks for the order of 100000sets for production
