7/8 inch preformed guy grips dead end clamp

1.Product description

The preformed guy grip dead-end clamp have simple and stable structure, easy to install and low price, especially designed for short span ADSS cable.

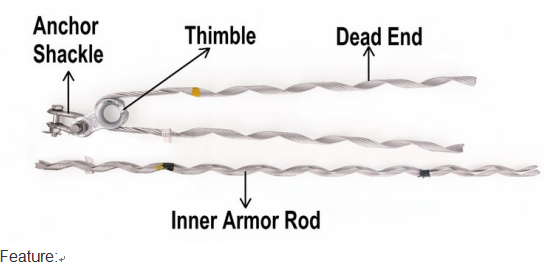

Configuration & material:

1. Clevis thimble: steel

2. Dead-end cable grip: Aluminum clad steel

3. Inner rod: Aluminum clad steel

4. Anchor shackle: U-7

(1) Stress can be distributed equally among the ADSS cable surface without stress centralization to protect ADSS cable.

(2) It can have higher grip strength for the cable and can support higher tensile force when stress doesn’t exceed the optical cable’s side strength.

(3) The grip strength for the cable is not less than 95% of rated tension strength (RTS) of the optical cable, fully suitable for the installation of ADSS cable

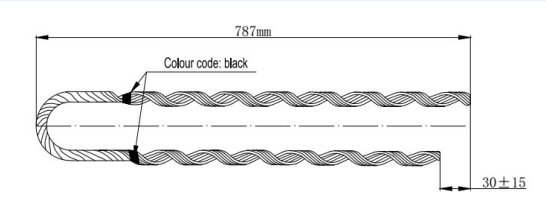

2.Drawing

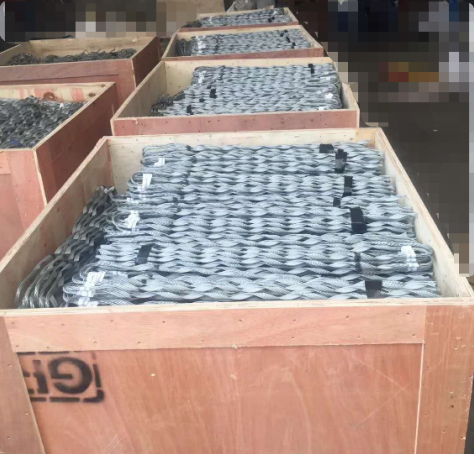

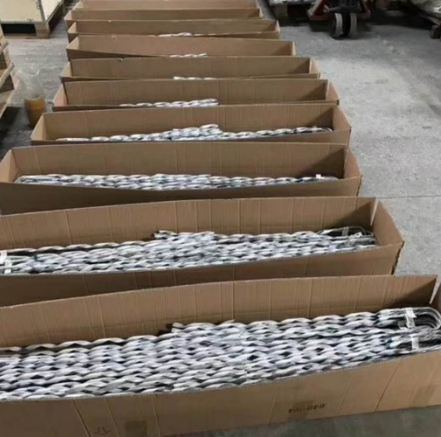

3.Packaging details
